Our RTA SIP kits include precision-engineered panels, fixings, and shop drawings — all pre-cut, flat-packed, and ready to ship globally
What Does Ready-To-Assemble
(RTA) Really Mean?
Construction made simple — down to the
last detail
At Quacent, Ready-To-Assemble (RTA) stands for more than just prefabricated convenience, it represents a new standard in streamlined construction. Our SIP building kits are meticulously engineered so you can start building immediately, with no technical expertise or on-site modifications needed. Each panel is crafted for a perfect fit, and every connection is precisely predesigned to ensure smooth, reliable assembly

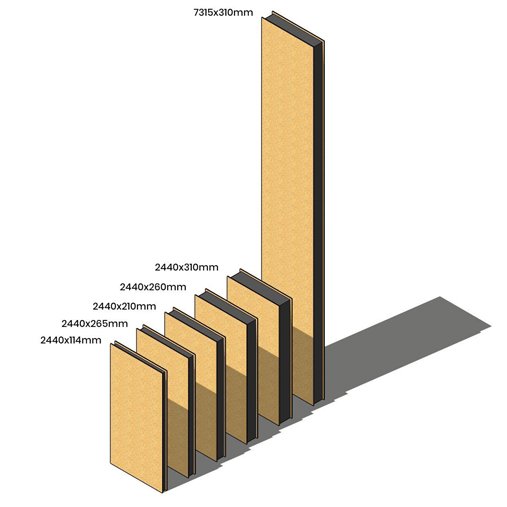

SIP Panels; Dimensions, Thicknesses
and RC Values
Panel thickness
114mm
165mm
210mm
260mm
310m
BASF Neopor core
92mm
143mm
187mm
238mm
289mm
Panel thickness
3.14 m²K/W
4.78 m²K/W
6.20 m²K/W
7.85 m²K/W
9.49 m²K/W
Panel thickness
0.32 W/m²K
0.21 W/m²K
0.16 W/m²K
0.13 W/m²K
0.11 W/m²K
Thicknesses
114mm
165mm
210mm
260mm
310mm

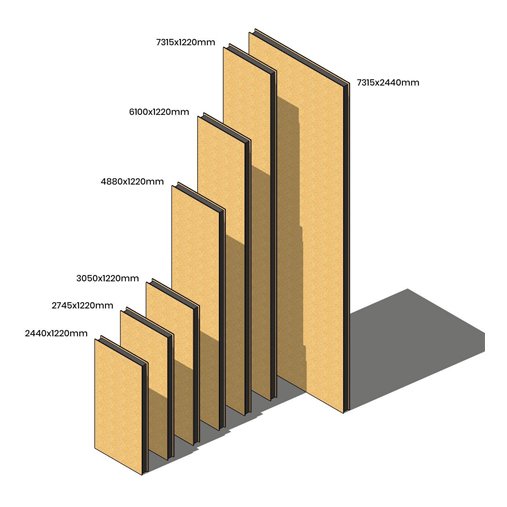

Dimensions
1220mm x 2440mm
1220mm x 2745mm
1220mm x 3050mm
1220mm x 4880mm
1220mm x 6100mm
1220mm x 7315mm
2440mm x 7315mm
Quacent SIP Panels: High-Performance, Sustainable Construction
Quacent SIP panels consist of a rigid BASF NEOPOR® insulation core, sandwiched between 11 mm OSB4 sheathing on both sides. This configuration ensures excellent airtightness, achieving airtightness class 3 and a qv;10 value of < 0.15 dm³/s·m²
Full System Composition:
OSB4 sheathing from Norbord – 100% formaldehyde-free glued
Structural SIP core – solid structural timber (GLT) from Hasslacher
Load-bearing components – Glulam BSH beams from Hasslacher
Sustainably sourced timber
Fire Resistance
Rated Euroclass C, fire-retardant modified in accordance with NEN 6065 / 6066
Acoustic Performance
Sound insulation of up to 31 dB, depending on element configuration (per NEN 5077 +C11)
Weight: Approximately 25–30 kg/m², depending on element thickness and cladding
The ideal basis for energy-neutral (BENG), sustainable and life-cycle-proof construction.
Because the importance of insulation values and airtightness is becoming increasingly important, traditional construction with concrete or stone will not be feasible or will become very costly if one wants to meet the stricter energy standards EPC and BENG. Facades with a value of Rc6 and roof Rc8 are the standard as well as an airtightness class 3. Therefore, SIP panels are well suited to meet the increasingly stringent requirements of new buildings.
Why Choose Quacent SIP Building Kits?
Fully Prefabricated
Each kit is manufactured in our factory with CNC-cut precision, pre-measured components, and ready-to-assemble materials. No on-site cutting or adjusting needed
Fast On-Site Assembly
Thanks to the straightforward building system, you save valuable time. In many cases, a complete structural shell can be erected in just a few days.
Superior Insulation & Energy Efficiency
Our SIP panels combine structure and insulation in a single element, delivering excellent airtightness, high thermal performance, and significantly reduced energy bills
Versatile Applications
Ideal for tiny houses, holiday homes, extensions, care units, or full-scale residential buildings. Modular, scalable, and adaptable to your custom design.
All-In-One Package
Includes: SIP walls, SIP roof panels, floors, fasteners, and clear installation instructions. Including pre-cut openings for windows and doors. Less coordination, more control.
Build Smarter with Quacent
We’re more than just a supplier — we support your project from design to delivery. With international experience and local expertise, Quacent is your trusted partner in SIP-based
prefab construction.
Wherever you build, we’ll meet you there
Our RTA kits are engineered for export — with support across Europe, Africa, Asia, and the Americas.
